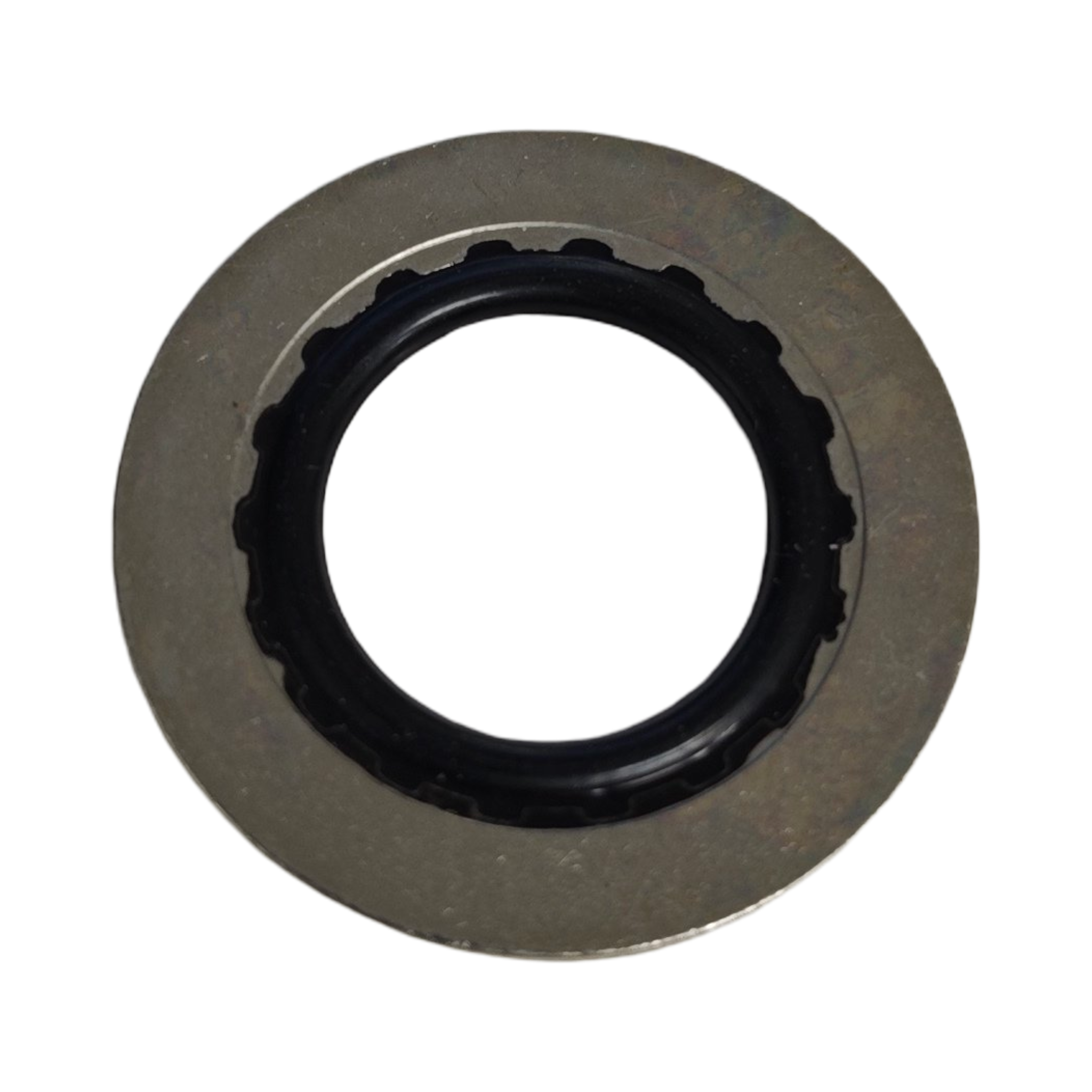

MaxFlo Motorsport AN3 STAT-O-SEAL 3/8" / 9.5MM ID

Our special aluminium Stat-O-Seals are much more reliable than the more common steel version. Even if the rubber portion fails to make contact all around the port, the aluminium acts as a crush washer, providing a reliable metal-on-metal seal.

Each Stat-O-Seal has a Buna-N inner seal bonded to the centre of the aluminium washer. The Buna-N rubber is resistant to water, oil, and petroleum fuels (not for use with brake fluid). Use them to seal screws, bolts, or plumbing fittings. The rubber insert is moulded to be slightly thicker than the washer, though not quite as thick as a standard rubber O-ring. Stat-O-Seals should not be used to replace O-rings on chamfered ports.

Sold individually.

Stat-O-Seal Dimensions
Nominal
Size		 ID Equivalent AN Size
(Plumbing Fittings)		 AN Size
(Bolts)		 OD Thickness
(Aluminium)		 Thickness
(Rubber)
3/16" 0.187"
4.7mm		 - AN3 0.44" 0.050" 0.075"
1/4" 0.250"
6.4mm		 - AN4 0.50" 0.050" 0.075"
5/16" 0.312"
7.9mm		 2AN AN5 0.60" 0.050" 0.075"
3/8" 0.375"
9.5mm		 3AN AN6 0.66" 0.050" 0.072"
7/16" 0.437"
11.1mm		 4AN AN7 0.76" 0.050" 0.073"
1/2" 0.500"
12.7mm		 - AN8 0.88" 0.050" 0.075"
9/16" 0.562"
14.3mm		 6AN AN9 1.06" 0.050" 0.075"
5/8" 0.625"
15.9mm		 - AN10 1.19" 0.050" 0.075"
3/4" 0.750"
19mm		 8AN - 1.32" 0.065" 0.095"
7/8" 0.875"
22.2mm		 10AN - 1.51" 0.065" 0.095"
1.00" 1"
24.5mm		 - - 1.76" 0.065" "0.095

MaxFlo Motorsport AN3 STAT-O-SEAL 3/8" / 9.5MM ID
