MaxFlo Motorsport high performance alloy oil cooler - 19 row with dual 5" Panasonic fans.

This efficient little workhorse is perfect for engine, transmission or power steering needs.
Utilizing a high-performance 19-Row Oil Cooler and airflow supplied by two 5"
waterproof/dustproof electric fans which with Panasonic motor, it can literally be mounted
anywhere space permits. Add the clever anodized aluminum dual shroud that doubles as
the mounting bracket, this cooler is equally efficient regardless of orientation. It can be
mounted upside down, vertically, horizontally or diagonally, and that flexibility makes it
truly unique in the remote cooler category.

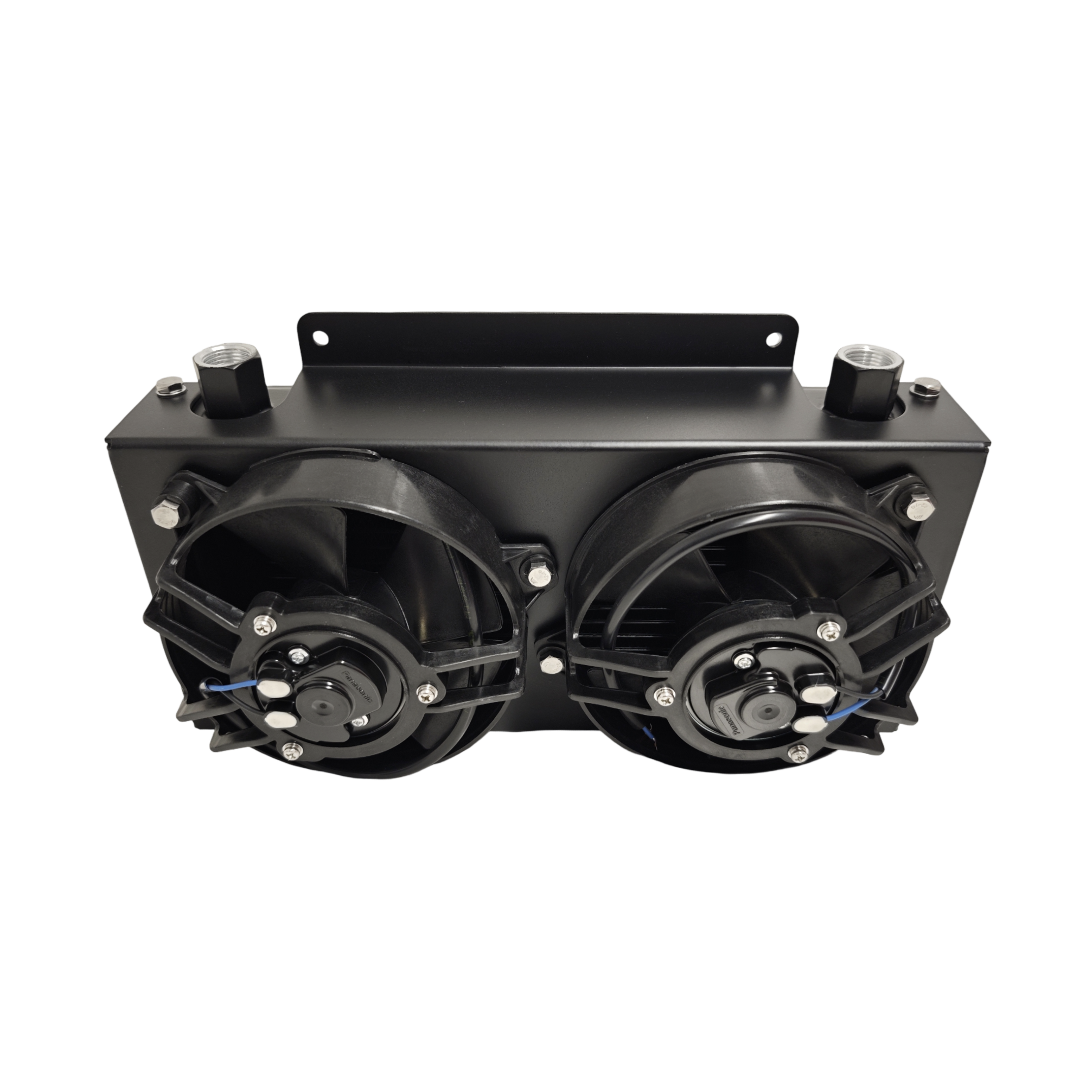

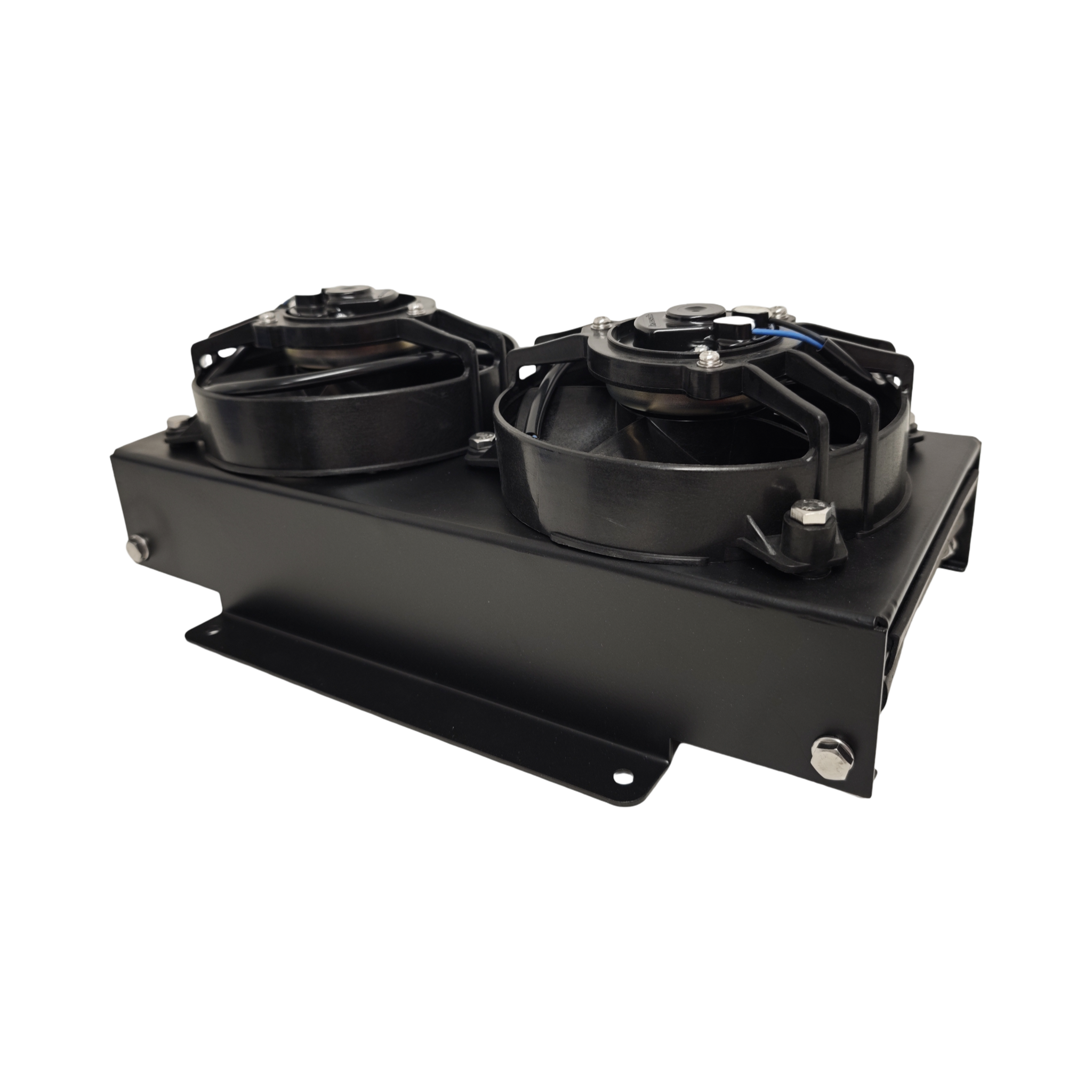

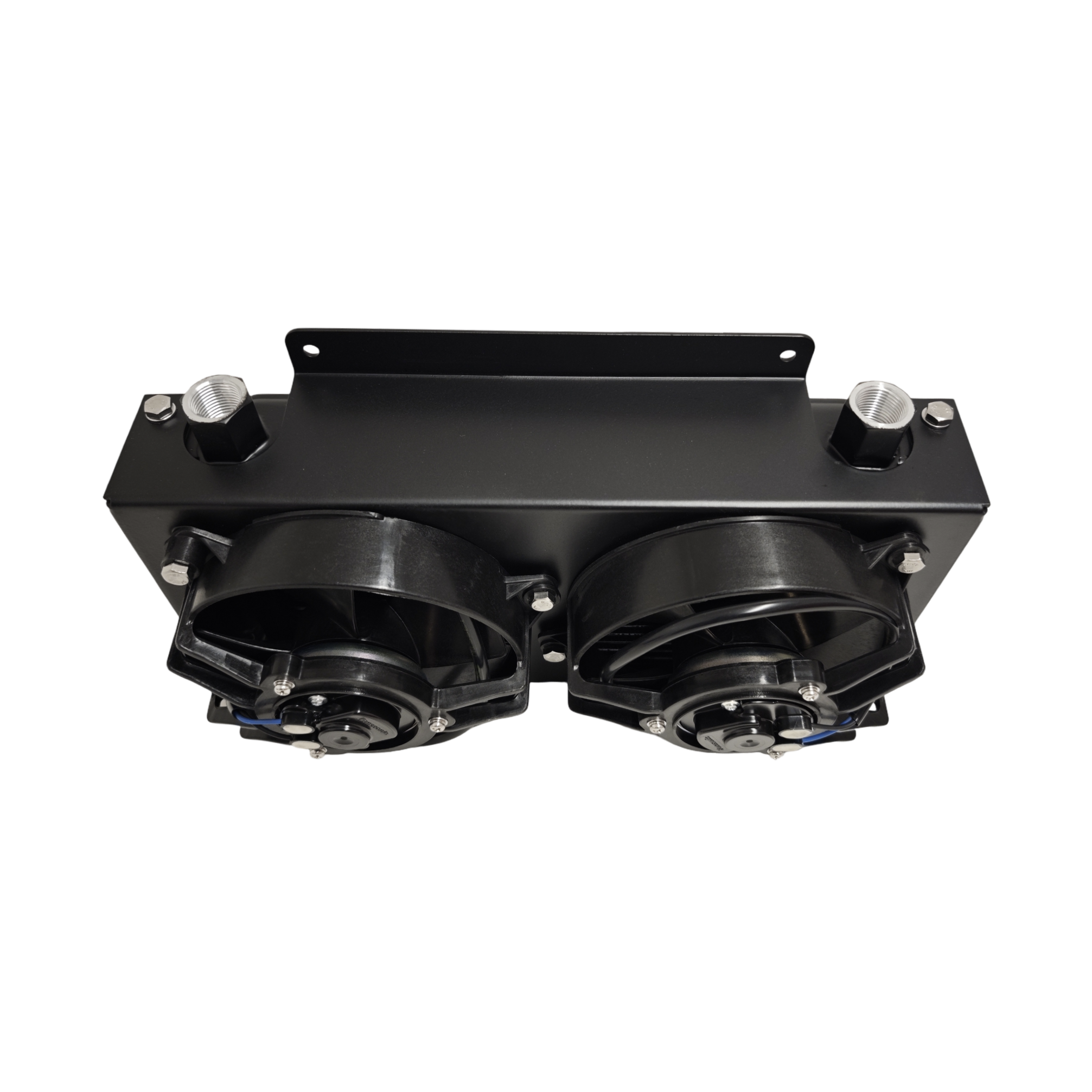

Two 5" Electric fans supply optimum airflow

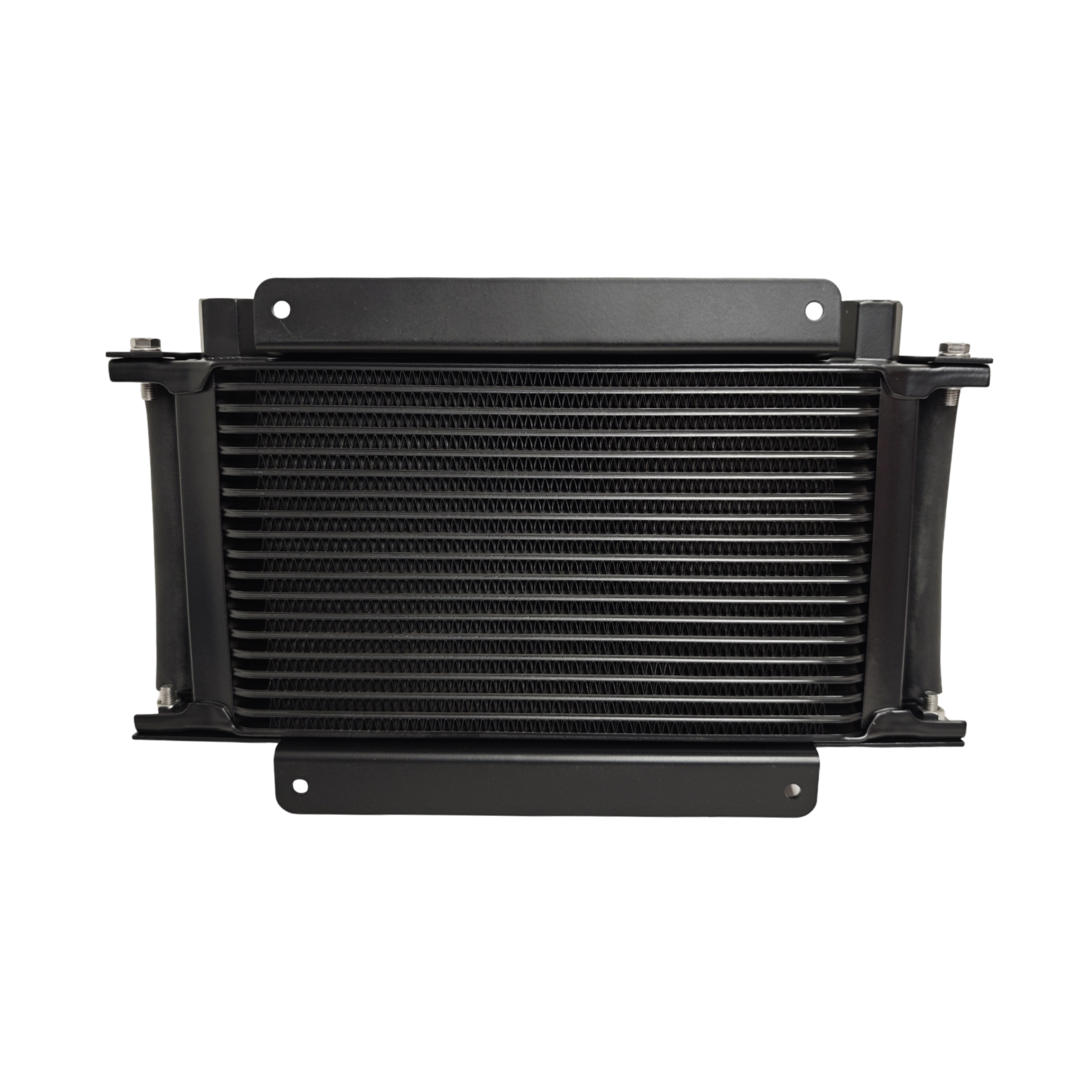

High efficiency Stack Plate 19 rows cooler
Mounts anywhere space permits
Long lasting sealed waterproof, dustproof Panasonic motor(s)
Dual electric fans - 630 CFM combined
Customized inlet size
37,000 BTU's Per Hour

Lightweight pressed plate design
Black powder coated finish
Aluminium construction
Designed to reduce oil temperature in high performance engines, transmission, differentials etc.

MaxFlo Motorsport oil coolers are used in race and rally cars, track day cars and fast road applications. The coolers can also been used in industrial applications. The optimum temperature of the oil is imperative when engine spends prolonged periods of time in the higher end of the rev range. By keeping the engine oil in the correct temperature, excess and premature wear of the engine is prevented.

The height of the cooler is measured in rows. This is the number of oil-ways, including the top and bottom plates.
The width is measured by the width of the matrix only

Universal Alloy -19 Row Oil Cooler 08AN Female

Technical Characteristics
Number of rows: 19

Fittings: 08AN Female
Matrix width: 245mm
Height: 205mm
Capacity: 0.38lt

Total width: 330mm

Max Pressure 145 PSI
Weight: 2.5kg
